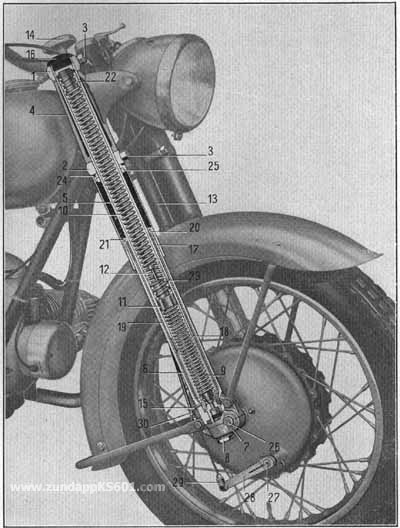

The Zundapp KS601 - Sectional View of Telescopic Forks







1
2
3
4
5
6
7
8
9
10
11
12
13

14
15






Upper Fork Cross Member
Lower Fork Cross Member
Clamping Screw
Headlight Support
Fork Tube
Fork Guide Tube
Jaw
Clamping Bolt
Short Spring
Long Spring
Spring Seat
Tension Bolt
Oil Cushioned Shock
Absorber
Steering Damper
Oil Drain Plug
Sectional View of Zundapp KS601 Telescopic Forks






16
17
18
19
20
21
22
23
24
25
26
27
28
29
30







Rubber Stopper
Upper Sliding Bush
Lower Sliding Bush
Sleeve
Spring Nut
Packing Ring
Air Vent
Lubrication Point
Rubber Ring
Bumper
Lock Bolt
Brake Toggle
Brake Lever Bar
Forked Joint
Adjusting Screw
Sectional View of Zundapp KS601 Front Forks
